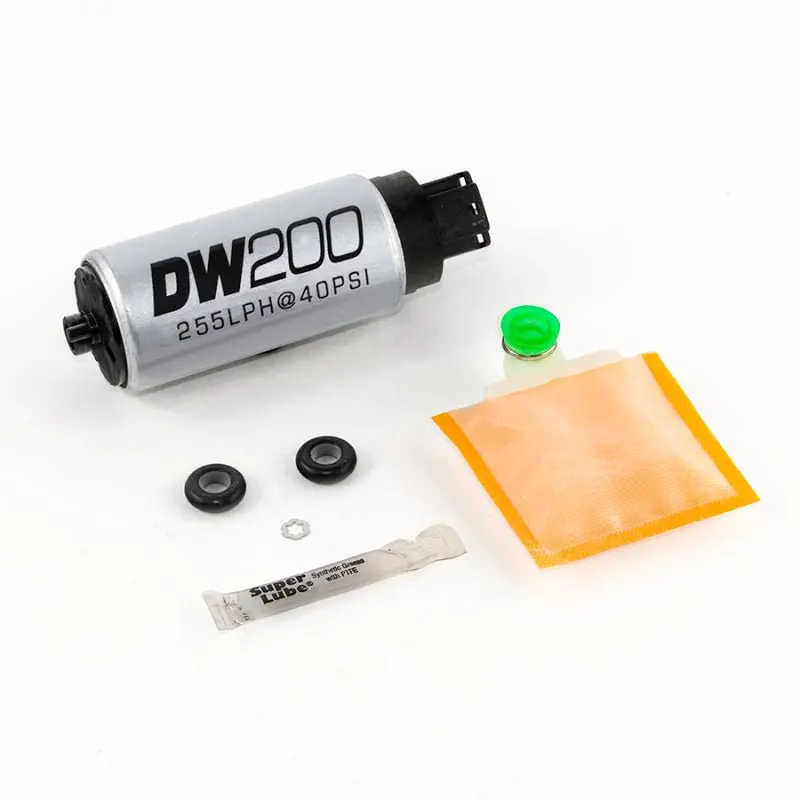

Deatschwerks 255 LPH In-Tank Fuel Pump with Installation Kit for 2006–2009 Honda S2000 (DWK9-201S-1004)

Description

The DeatschWerks DW200 flows an amazing 255lph at 40psi and is a popular choice for many high-performance applications which can be fitted with a standard fitment pump. The DW200 features a silent and reliable turbine impeller that is compatible with pulse width modulated pump drivers. The pump also features an encapsulated armature for compatibility with ethanol-based fuels. All DW fuel pumps are backed by a 3-yr no-fault warranty

PLEASE NOTE

• THIS PRODUCT MAY BE USED SOLELY ON VEHICLES USED IN SANCTIONED COMPETITION WHICH MAY NEVER BE USED UPON A PUBLIC ROAD OR HIGHWAY UNLESS PERMITTED BY SPECIFIC REGULATORY EXEMPTION

APPLICATION

• Honda S2000 (2006, 2007, 2008, 2009)

SPECIFICATIONS

• Weight: 12.6oz (360 grams)
• External Materials: Electroplated Steel
• Inlet Fitting: 7.7mm ID, 11.0mm OD
• Outlet Fitting: 5/16″ Hose Clamp
• PRV Activation: 100 psi
• Impeller Design: Single Scroll Composite Turbine
• Connector Terminal: Spade Pos/Neg
• Min Voltage Input: 6 Volts
• Max Voltage Input: 18 Volts
• Current Draw 40psi: 9 Amps (13.5v)

WARRANTY

• All DW fuel pumps are backed by a 3-yr no-fault warranty
