Radium Engineering Dual Catch Can Kit with Fluid Lock for Nissan GT-R R35 CCV System

Description

20-0555 DUAL CATCH CAN KIT, CCV, NISSAN R35 GT-R
To retain factory functionality, the two CCV catch cans run inline between each crankcase vent (CCV) port and the corresponding turbo inlets.

At low loads, these catch cans experience atmospheric pressure. However, when the engine is at high load (WOT), these vents will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation in the air filter intake pipe. Oil accumulation will occur in the intercooler which lowers the thermal efficiency properties of the heat exchanger and leads to decreased performance.

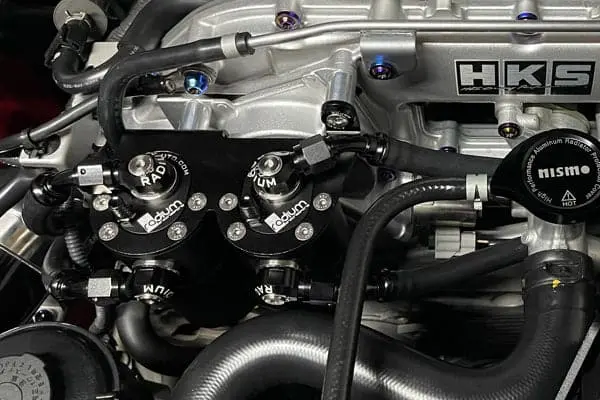

The 20-0555 crankcase vent kit mounts on the front of the engine and interfaces with the breather lines coming off of the heads and going to the turbo intake piping. This kit contains two catch cans (one for each head breather).

NOTES:
1. The dual CCV catch can kit does NOT address blow-by from the PCV valve side of the crankcase.
2. The dual CCV catch can kit is compatible and recommended to be used with the PCV catch can kit. See 20-0566-FL below.
